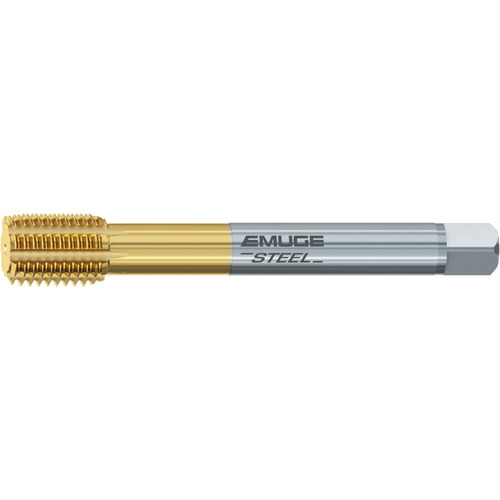

Forming Tap; 1″ - 8 × 6.299″ OAL × 0.8″ Shank Dia. ; HSSE-PM ; TiN ; 2BX
| Tool Type | Forming Tap | Applicable Material | | Super-Alloys / Titanium | |
| Thread Diameter Size (TDZ) | 1″ | Coating | TiN |
| Overall Length (OAL) | 6.299″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Threads per Inch (TPI) | 8 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE-PM |
| Thread Standard | UNC | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | CU377F00 |
Product Features
| Remarks | • InnoForm Steel-H roll form tap is designed for specific hardened steels and materials. • The high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.814
