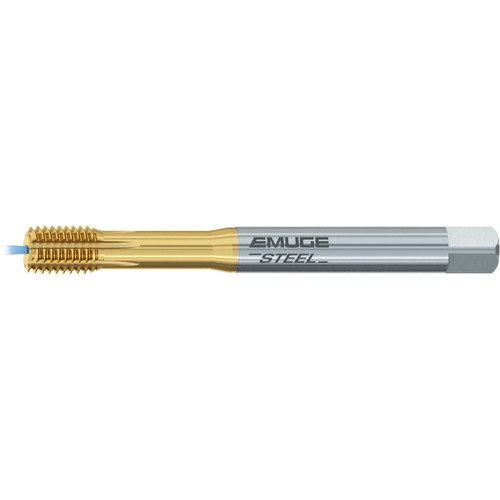

‎Forming Tap; 1/4″ - 28 × 3.15″ OAL × 0.255″ Shank Dia. ; HSSE-PM ; TiN ; 2BX

‎Forming Tap; 1/4″ - 28 ; 3.15″ OAL × 0.255″ Shank Dia. ; HSSE-PM ; TiN ; 2BX

Item # ER45447F005043

Brand: Emuge-Franken

MFG #: BU447F00.5043

Legacy Part #: ER45447F005043

TradeName: EMUGE - STEEL

Tool Type

Forming Tap

Applicable Material

| Steel |

Thread Diameter Size (TDZ)

1/4″

Coating

TiN

Overall Length (OAL)

3.15″

Coolant Supply Property (CSP)

Coolant Thru

Connection Diameter Machine Side (DCONMS)

0.255″

Threads per Inch (TPI)

Thread Tolerance Class (TCTR)

2BX

Chamfer

‎1.5P-2P

Tap Standard

DIN | ANSI

Cutting Edge Material

HSSE-PM

Thread Standard

UNF

Cutting Direction (HAND)

Right Hand

Application

Blind Hole

Series/List #

BU44Q200

Product Features

Remarks

• The InnoForm Steel roll form tap is designed for steel and ferrous materials. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Package Weight

0.033
