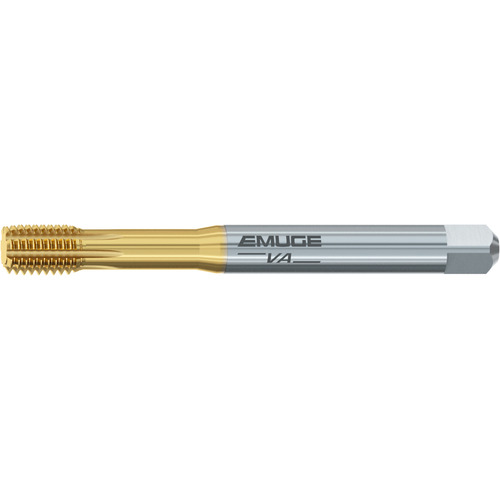

Forming Tap; M10 × 1.5 mm × 100 mm OAL × 10 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX

Forming Tap; M10 × 1.5 mm ; 100 mm OAL × 10 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX

Item # ER455296A000100

Brand: Emuge-Franken

MFG #: B5296A00.0100

Legacy Part #: ER455296A000100

TradeName: EMUGE - VA

Tool Type

Forming Tap

Application

Blind Hole

Thread Diameter Size (TDZ)

M10

Applicable Material

| Stainless Steel |

Thread Pitch (TP)

1.5 mm

Coating

TiN

Overall Length (OAL)

100 mm

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

10 mm

Chamfer

‎1.5P-2P

Thread Tolerance Class (TCTR)

6HX

Cutting Edge Material

HSSE-PM

Tap Standard

DIN

Cutting Direction (HAND)

Right Hand

Thread Standard

Metric

Series/List #

B5296A00

Product Features

Remarks

• The InnoForm VA roll form tap is designed for alloyed steel and stainless steel. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Package Weight

0.2
