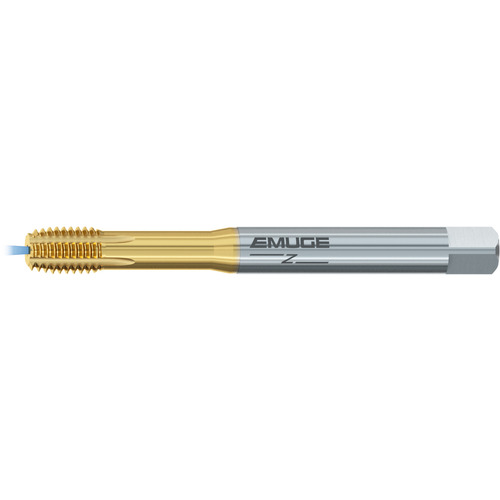

 InnoForm 1-Z-SN-IKZ-PM-TIN-80/(3D) InnoForm 1-Z-SN-IKZ-PM-TIN-80_Enlarge.jpg)
Forming Tap; M10 × 1.5 mm × 100 mm OAL × 10 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX
Forming Tap; M10 × 1.5 mm ; 100 mm OAL × 10 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX
| Tool Type | Forming Tap | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Other Non-Metallic Materials | |
| Thread Pitch (TP) | 1.5 mm | Coating | TiN |
| Overall Length (OAL) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Series/List # | B523Z700 |
Product Features
| Remarks | • The InnoForm Z roll form tap is designed for aluminum alloys and low carbon steel applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
