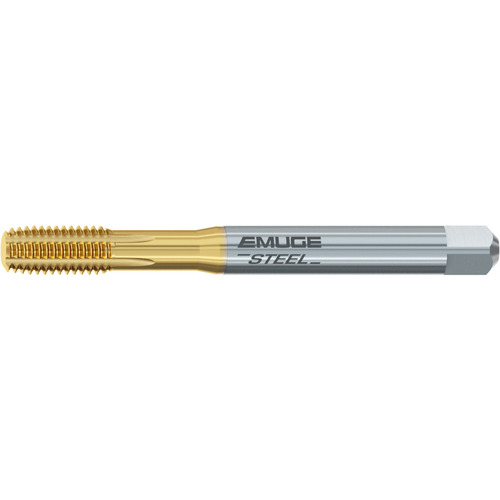

Forming Tap; 1/4″ - 20 × 3.15″ OAL × 0.255″ Shank Dia. ; HSSE ; TiN ; BT
Forming Tap; 1/4″ - 20 ; 3.15″ OAL × 0.255″ Shank Dia. ; HSSE ; TiN ; BT
| Tool Type | Forming Tap | Applicable Material | | Universal Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Coating | TiN |
| Overall Length (OAL) | 3.15″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Threads per Inch (TPI) | 20 |
| Thread Tolerance Class (TCTR) | BT | Chamfer | 1.5P-2P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE |
| Thread Standard | UNC | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | BU931400 |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.059
