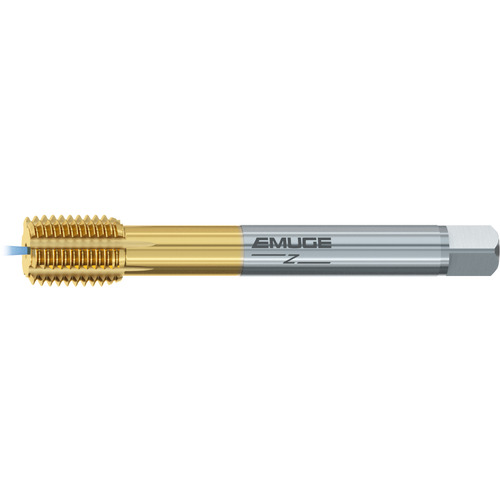

Forming Tap; 9/16″ - 12 × 4.331″ OAL × 0.429″ Shank Dia. ; HSSE-PM ; TiN ; 2BX
Forming Tap; 9/16″ - 12 ; 4.331″ OAL × 0.429″ Shank Dia. ; HSSE-PM ; TiN ; 2BX
| Tool Type | Forming Tap | Applicable Material | | Universal Materials | |
| Thread Diameter Size (TDZ) | 9/16″ | Coating | TiN |
| Overall Length (OAL) | 4.331″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Threads per Inch (TPI) | 12 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 1.5P-2P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE-PM |
| Thread Standard | UNC | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | CU44Z700 |
Product Features
| Remarks | • The Druck Z roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.055
