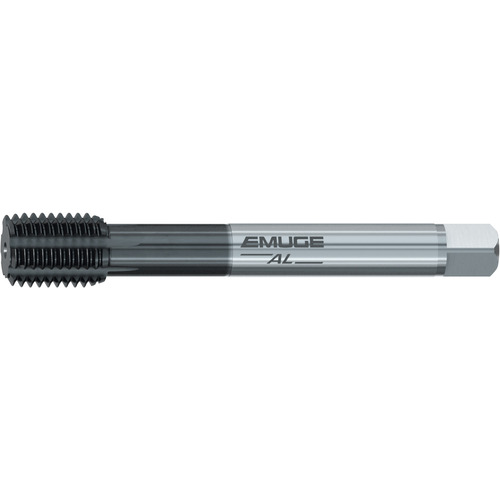

Forming Tap; 5/8″ - 18 × 3.937″ OAL × 0.48″ Shank Dia. ; HSSE-PM ; GLT-8 ; 2BX
Forming Tap; 5/8″ - 18 × 3.937″ OAL × 0.48″ Shank Dia. ; HSSE-PM ; GLT-8 ; | 2BX |
| Tool Type | Forming Tap | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 5/8″ | Coating | GLT-8 |
| Overall Length (OAL) | 3.937″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Threads per Inch (TPI) | 18 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE-PM |
| Thread Standard | UNF | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | CU37Y700 |
Product Features
| Remarks | • The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.184
