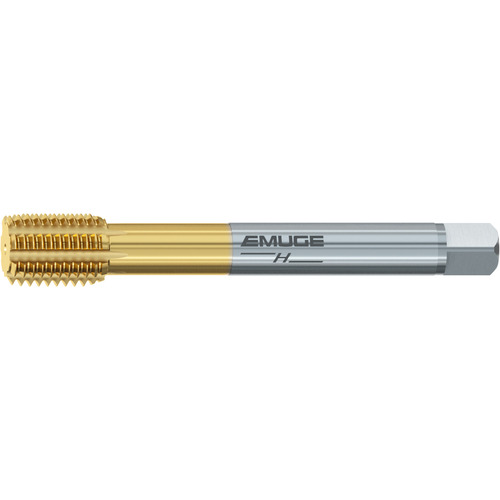

 InnoForm 2-H-SN-PM-TIN-T26/(3D) InnoForm 2-H-SN-PM-TIN-T26_1_Enlarge.jpg)
 InnoForm 2-H-SN-PM-TIN-T26/(3D) InnoForm 2-H-SN-PM-TIN-T26_Enlarge.jpg)
Forming Tap; M16 × 2 mm × 110 mm OAL × 12 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX
Forming Tap; M16 × 2 mm ; 110 mm OAL × 12 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX
| Tool Type | Forming Tap | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M16 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 2 mm | Coating | TiN |
| Overall Length (OAL) | 110 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Series/List # | C521W700 |
Product Features
| Remarks | • InnoForm H roll form tap is designed for specific hardened applications and materials. • The high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.2
