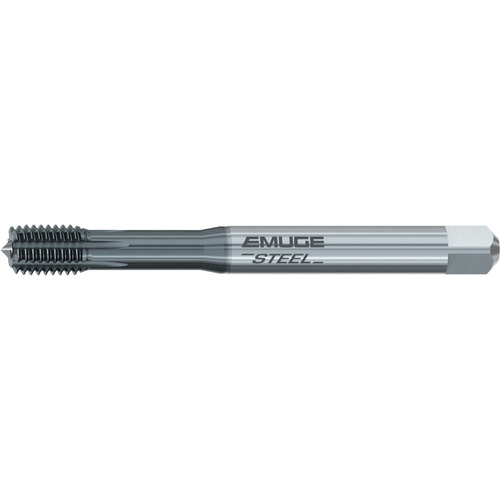

 InnoForm 1-STEEL-H-SN-PM-TICN-67/(3D) InnoForm 1-STEEL-H-SN-PM-TICN-67_Enlarge.jpg)
Forming Tap; 1/4″ - 20 × 3.15″ OAL × 0.255″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
Forming Tap; 1/4″ - 20 ; 3.15″ OAL × 0.255″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
| Tool Type | Forming Tap | Applicable Material | | Super-Alloys / Titanium | |
| Thread Diameter Size (TDZ) | 1/4″ | Coating | TiCN |
| Overall Length (OAL) | 3.15″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Threads per Inch (TPI) | 20 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE-PM |
| Thread Standard | UNC | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | BU376F00 |
Product Features
| Remarks | • InnoForm Steel-H roll form tap is designed for specific hardened steels and materials. • The high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.037
