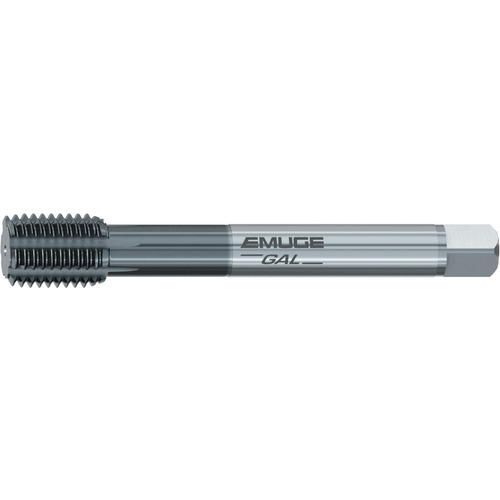

 InnoForm 2-GAL-SN-PM-TICN/(3D) InnoForm 2-GAL-SN-PM-TICN_1_Enlarge.jpg)
 InnoForm 2-GAL-SN-PM-TICN/(3D) InnoForm 2-GAL-SN-PM-TICN_Enlarge.jpg)
Forming Tap; 1/2″ - 20 × 3.937″ OAL × 0.367″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
Forming Tap; 1/2″ - 20 ; 3.937″ OAL × 0.367″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
| Tool Type | Forming Tap | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/2″ | Coating | TiCN |
| Overall Length (OAL) | 3.937″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Threads per Inch (TPI) | 20 |
| Thread Tolerance Class (TCTR) | 2BX | Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE-PM |
| Thread Standard | UNF | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | CU37Q200 |
Product Features
| Remarks | • The InnoForm GAL roll form tap is designed for cast aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.112
