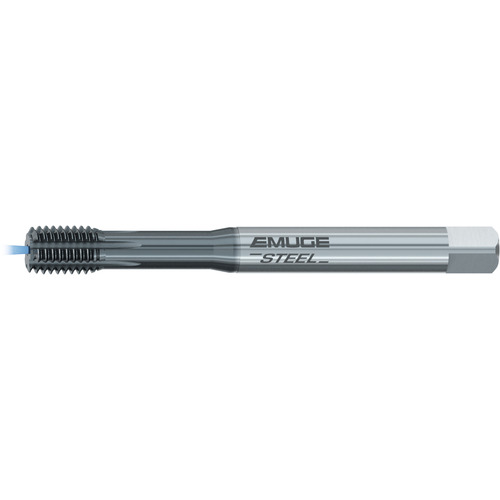

Forming Tap; #12 - 24 × 3.15″ OAL × 0.22″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
Forming Tap; #12 - 24 ; 3.15″ OAL × 0.22″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | #12 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.15″ | Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.22″ | Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | BU386F00 |
| Application | Blind Hole | Thread Size | #12 - 24 |
| Applicable Material | | Super-Alloys / Titanium | |
Product Features
| Remarks | • The InnoForm H roll form tap is designed for high tensile strength materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.026
