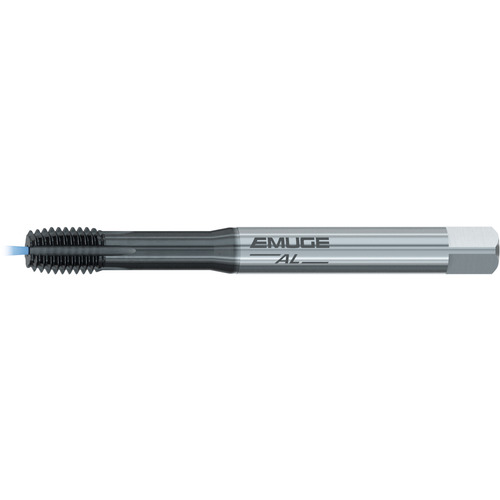

Forming Tap; #10 - 32 × 2.756″ OAL × 0.194″ Shank Dia. ; HSSE-PM ; GLT-8 ; 2BX
Forming Tap; #10 - 32 × 2.756″ OAL × 0.194″ Shank Dia. ; HSSE-PM ; GLT-8 ; | 2BX |
| Tool Type | Forming Tap | Coating | GLT-8 |
| Thread Diameter Size (TDZ) | #10 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2.756″ | Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF | Series/List # | BU44Y700 |
| Application | Blind Hole | Thread Size | #10 - 32 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Remarks | • The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.017
