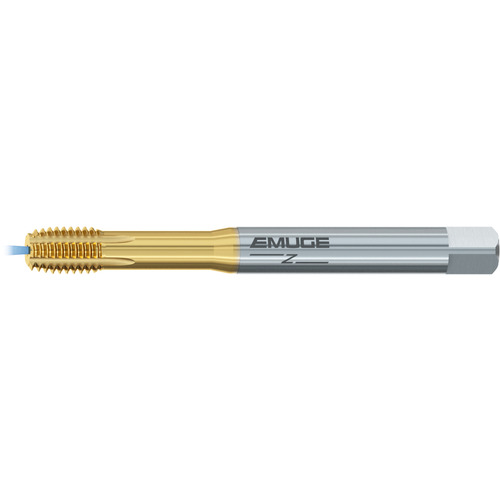

Forming Tap; #10 - 24 × 2.756″ OAL × 0.194″ Shank Dia. ; HSSE-PM ; TiN ; 2BX
Forming Tap; #10 - 24 ; 2.756″ OAL × 0.194″ Shank Dia. ; HSSE-PM ; TiN ; 2BX
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | #10 | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2.756″ | Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | BU44Z700 |
| Application | Blind Hole | Thread Size | #10 - 24 |
| Applicable Material | | Universal Materials | |
Product Features
| Remarks | • The Druck Z roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.017
