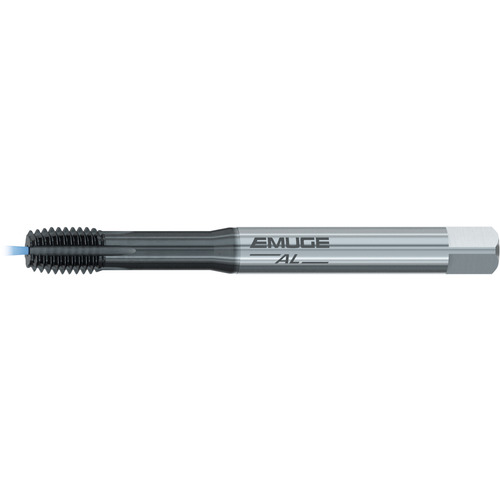

Forming Tap; M8 × 1.25 mm × 90 mm OAL × 35 mm LU × 8 mm Shank Dia. ; HSSE-PM ; GLT-8 ; 6HX ; Series 531Y700
Forming Tap; M8 × 1.25 mm ; 90 mm OAL × 35 mm LU × 8 mm Shank Dia. ; HSSE-PM ; GLT-8 ; 6HX ; Series 531Y700
| Tool Type | Forming Tap | Applicable Material | | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | M8 | Coating | DLC |
| Thread Pitch (TP) | 1.25 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 90 mm | Chamfer | 1.5P-2P |
| Usable Length (LU) | 35 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN | Series/List # | B531Y700 |
| Thread Standard | Metric | Thread Size | M8 × 1.25 |
| Application | Blind Hole |
Product Features
| Remarks | • The InnoForm Z roll form tap is designed for aluminum alloys and low carbon steel applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.11
