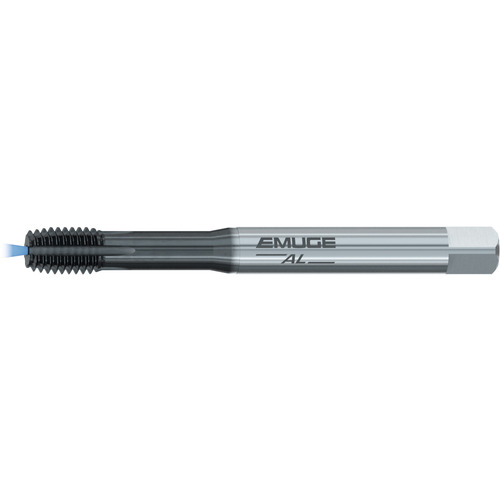

Forming Tap; M6 × 1 mm × 80 mm OAL × 30 mm LU × 6 mm Shank Dia. ; HSSE-PM ; GLT-8 ; 6HX ; Series 523Y700
Forming Tap; M6 × 1 mm × 80 mm OAL × 30 mm LU × 6 mm Shank Dia. ; HSSE-PM ; GLT-8 ; | 6HX | ; Series 523Y700
| Tool Type | Forming Tap | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M6 | Coating | GLT-8 |
| Thread Pitch (TP) | 1 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 80 mm | Chamfer | 2P-3P |
| Usable Length (LU) | 30 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN | Series/List # | B523Y700 |
| Thread Standard | Metric | Thread Size | M6 × 1 |
| Application | Blind Hole |
Product Features
| Remarks | • The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.033
