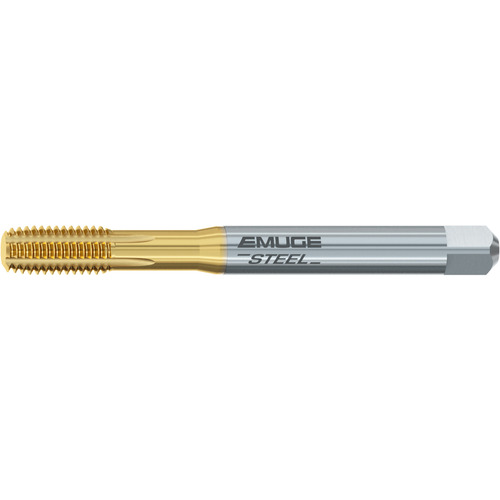

Forming Tap; 10″ - 32 × 2.756″ OAL × 0.194″ Shank Dia. ; HSSE ; TiN ; BT ; Series U93F300
Forming Tap; 10″ - 32 ; 2.756″ OAL × 0.194″ Shank Dia. ; HSSE ; TiN ; BT ; Series U93F300
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | 10″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.756″ | Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | BT | Measurement Type | Inch |
| Tap Standard | DIN | ANSI | Cutting Edge Material | HSSE |
| Thread Standard | UNF | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Series/List # | BU93F300 |
| Applicable Material | | Universal Materials | | Thread Size | #10 - 32 |
Product Features
| Remarks | • Rekord Druck-S form tap provides chipless tapping in low tensile materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0286
