 Drück 1-STEEL-SN-NT (1)/(3D) Drück 1-STEEL-SN-NT (1)_Enlarge.jpg)

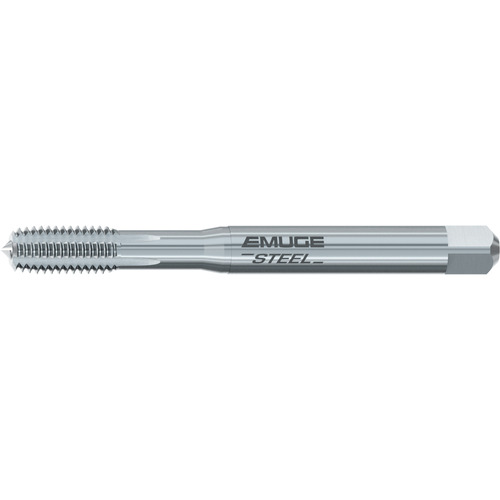

Forming Tap; #1 - 64 × 1.772″ OAL × 0.141″ Shank Dia. ; HSSE ; NT ; 2BX ; Series U921000
Forming Tap; #1 - 64 ; 1.772″ OAL × 0.141″ Shank Dia. ; HSSE ; 2BX ; Series U921000
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #1 | Threads per Inch (TPI) | 64 |
| Overall Length (OAL) | 1.772″ | Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | BU921000 |
| Application | Blind Hole | Thread Size | #1 - 64 |
| Applicable Material | | Universal Materials | |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.0044
