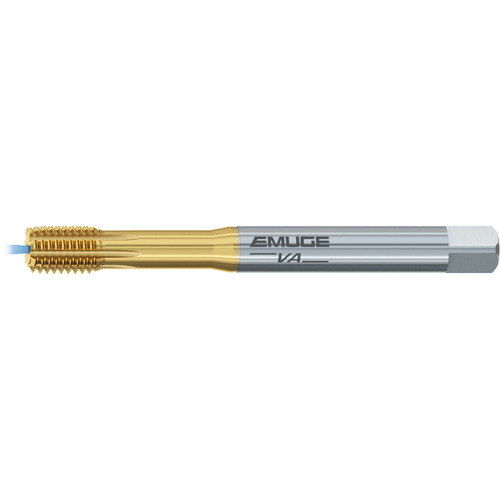

Forming Tap; 1/4″ - 20 × 3.15″ OAL × 30 mm LU × 0.255″ Shank Dia. ; HSSE-PM ; TiN ; 2BX ; Series U446A00
Forming Tap; 1/4″ - 20 ; 3.15″ OAL × 30 mm LU × 0.255″ Shank Dia. ; HSSE-PM ; TiN ; 2BX ; Series BU446A00
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | 1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.15″ | Threads per Inch (TPI) | 20 |
| Usable Length (LU) | 30 mm | Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | BU446A00 |
| Application | Blind Hole | Thread Size | 1/4″ - 20 |
| Applicable Material | | Stainless Steel | |
Product Features
| Remarks | • The InnoForm VA roll form tap is designed for alloyed steel and stainless steel. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.04
