6-32-TAP-VA-BOT-PM-TIN

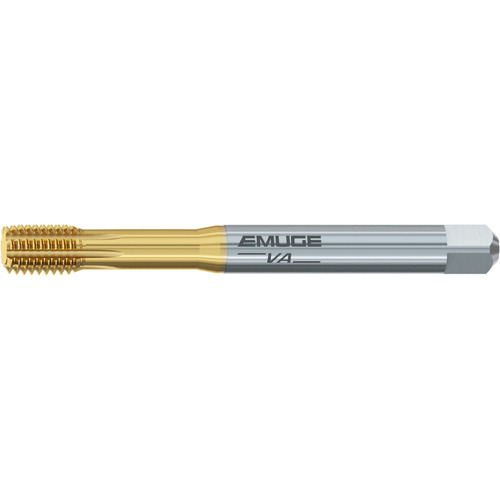

Forming Tap; #6 - 32 ; 2.205″ OAL × 20 mm LU × 0.141″ Shank Dia. ; HSSE-PM ; TiN ; 2BX ; Series BU446F00
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | #6 | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.205″ | Threads per Inch (TPI) | 32 |
| Usable Length (LU) | 20 mm | Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Measurement Type | Wire Gauge |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | BU446F00 |
| Application | Blind Hole | Thread Size | #6 - 32 |
| Applicable Material | | Stainless Steel | |
Product Features
| Remarks | • The InnoForm VA roll form tap is designed for alloyed steel and stainless steel. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.015
