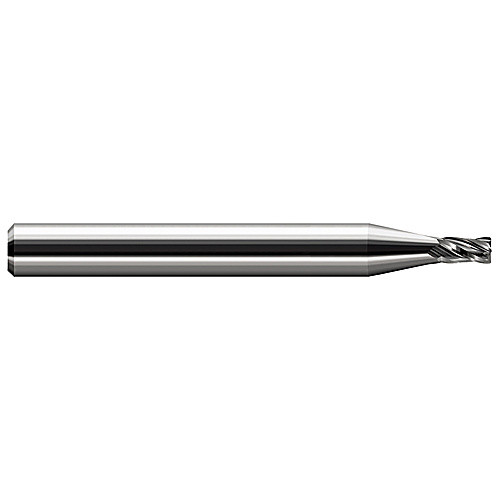

Miniature End Mills - Stub & Standard - 0.2500″ (1/4″) Cutter Diameter × 0.0450″ Radius × 0.3750″ (3/8″) Length of Cut Carbide Corner Radius End Mill, 4 Flutes
Corner Radius End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/8″ | Corner Radius (RE) | 0.045″ |
| Overall Length (OAL) | 2-1/2″ | Flute Type | Stub|Standard |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | Uncoated | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.064
