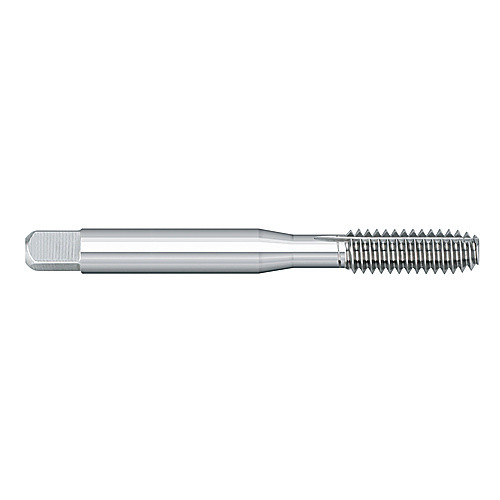

TT89811 898 M10X1.5 D11
Forming Tap; M10 × 1.5 mm ; 2-15/16″ OAL × 1-1/4″ LU × 0.381″ Shank Dia. ; HSS ; Uncoated ; D11
| Thread Diameter Size (TDZ) | M10 | Thread Standard | Metric |
| Thread Pitch (TP) | 1.5 mm | Coating | Uncoated |
| Overall Length (OAL) | 2-15/16″ | Chamfer | Plug |
| Thread Cutting Part Length (THL) | 1-1/4″ | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Thread Size | M10 × 1.5 |
| Thread Tolerance Class (TCTR) | D11 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.072
