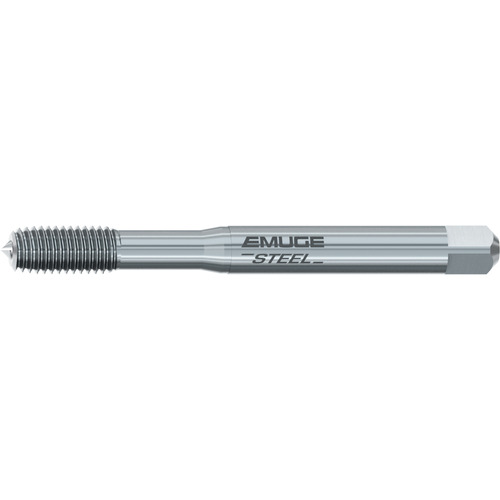

Forming Tap; M4 × 0.7 mm × 63 mm OAL × 21 mm LU × 4.5 mm Shank Dia. ; HSSE ; NT ; 6HX ; Series 911000
Forming Tap; M4 × 0.7 mm ; 63 mm OAL × 21 mm LU × 4.5 mm Shank Dia. ; HSSE ; 6HX ; Series 911000
| Tool Type | Forming Tap | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M4 | Applicable Material | | Universal Materials | |
| Thread Pitch (TP) | 0.7 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 63 mm | Chamfer | 2P-3P |
| Usable Length (LU) | 21 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm | Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN | Series/List # | B0911000 |
| Thread Standard | Metric | Thread Size | M4 × 0.7 |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
