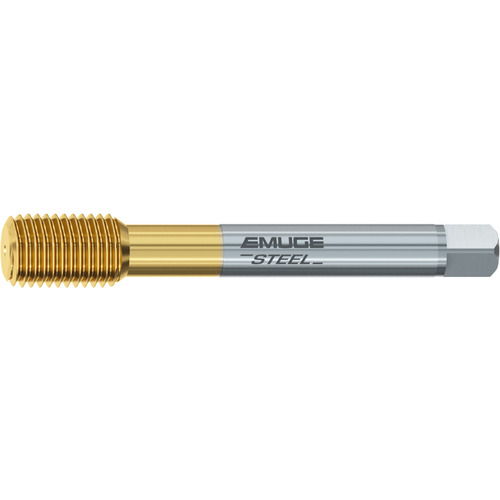

Forming Tap; M20 × 1.5 mm × 125 mm OAL × 16 mm Shank Dia. ; HSSE ; TiN ; 6HX ; Series 0911400
Forming Tap; M20 × 1.5 mm ; 125 mm OAL × 16 mm Shank Dia. ; HSSE ; TiN ; 6HX ; Series 0911400
| Tool Type | Forming Tap | Applicable Material | | Universal Materials | |
| Thread Diameter Size (TDZ) | M20 | Coating | TiN |
| Thread Pitch (TP) | 1.5 mm | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 125 mm | Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Edge Material | HSSE |
| Tap Standard | DIN | Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric | Series/List # | C0911400 |
| Application | Blind Hole | Thread Size | M20 × 1.5 |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
