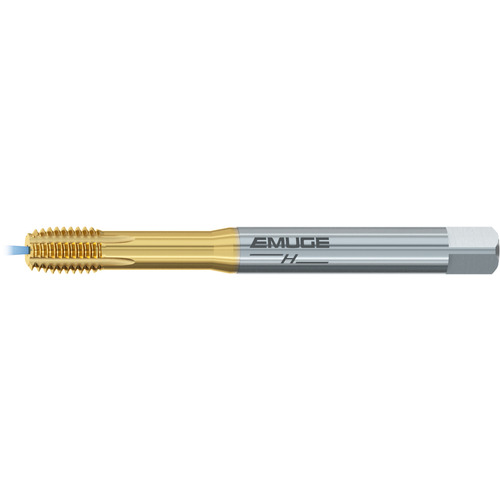

 InnoForm 1-H-SN-IKZ-PM-TIN-T26/(3D) InnoForm 1-H-SN-IKZ-PM-TIN-T26_Enlarge.jpg)
Forming Tap; M6 × 1 mm × 80 mm OAL × 30 mm LU × 6 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX ; Series 523W700
Forming Tap; M6 × 1 mm ; 80 mm OAL × 30 mm LU × 6 mm Shank Dia. ; HSSE-PM ; TiN ; 6HX ; Series 523W700
| Tool Type | Forming Tap | Application | Blind Hole |
| Thread Diameter Size (TDZ) | M6 | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1 mm | Coating | TiN |
| Overall Length (OAL) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 30 mm | Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX | Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN | Series/List # | B523W700 |
| Thread Standard | Metric | Thread Size | M6 × 1 |
Product Features
| Remarks | • InnoForm H roll form tap is designed for specific hardened applications and materials. • The high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
