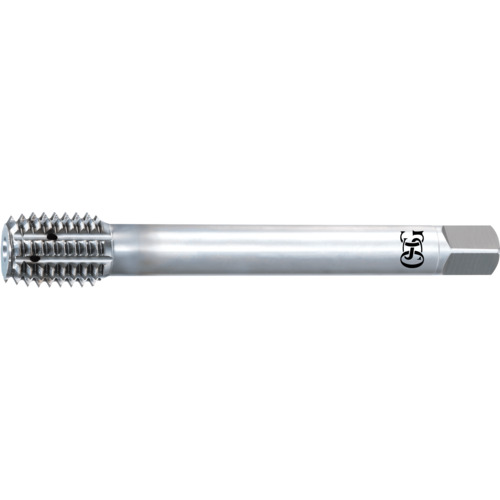

5/16-24 H7 4.5P EXO-PRO
Forming Tap; 5/16″ - 24 ; 3.54″ OAL × 1.378″ LU × 0.318″ Shank Dia. ; HSSCo ; Vanadium ; H7 ; Series 16050
| Tool Type | Forming Tap | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Diameter Size (TDZ) | 5/16″ | Threads per Inch (TPI) | 24 |
| Overall Length (OAL) | 3.54″ | Chamfer | 4.5P |
| Thread Cutting Part Length (THL) | 0.555″ | Square Size | 0.238″ |
| Usable Length (LU) | 1.378″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H7 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF | Pack Size | 1 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Series/List # | 16050 |
| Coating | Vanadium | Thread Size | 5/16″ - 24 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.45000
Package Height
.45000
Package Weight
0.085
