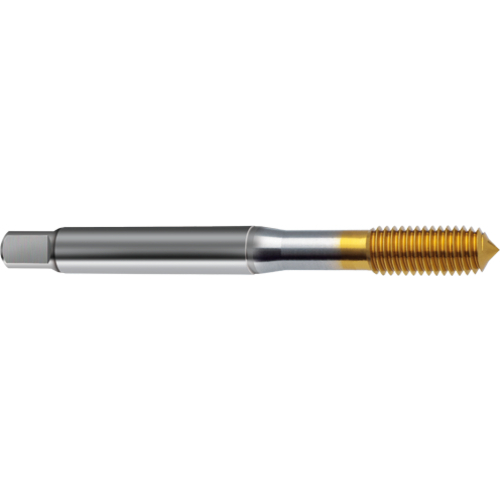

9009210017000 FORM TAP
Forming Tap; M1.7 × 0.35 mm ; 40 mm OAL × 6.8 mm LU × 2.5 mm Shank Dia. ; TiN ; D4|D5 ; Series 921
Additional Tariff Surcharge of 6.6 %
| Tool Type | Form Tap | Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M1.7 | Application | Blind | Through Hole |
| Thread Pitch (TP) | 0.35 mm | Coating | TiN |
| Overall Length (OAL) | 40 mm | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 6.8 mm | Chamfer | 2-3 Form C |
| Connection Diameter Machine Side (DCONMS) | 2.5 mm | Series/List # | 921 |
| Drive Size (DRVS) | 2.1 mm | Thread Size | M1.7 × 0.35 |
| Thread Tolerance Class (TCTR) | D4|D5 | Body Material | HSS-E |
| Tap Standard | DIN 371 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.2
