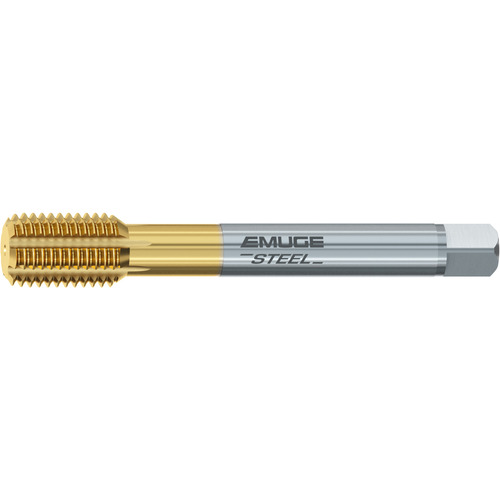

Forming Tap; 1/2″ - 13 × 3.937″ OAL × 0.429″ Shank Dia. ; HSSE ; TiN-T1 ; BT
Forming Tap; 1/2″ - 13 ; 3.937″ OAL × 0.429″ Shank Dia. ; HSSE ; TiN ; BT
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | 1/2″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.937″ | Threads per Inch (TPI) | 13 |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | BT | Cutting Edge Material | HSSE |
| Tap Standard | Self-Lock | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC | Series/List # | CU931400 |
| Application | Blind Hole | Thread Size | 1/2″ - 13 |
| Applicable Material | | Universal Materials | |
Product Features
| Remarks | • The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.114
