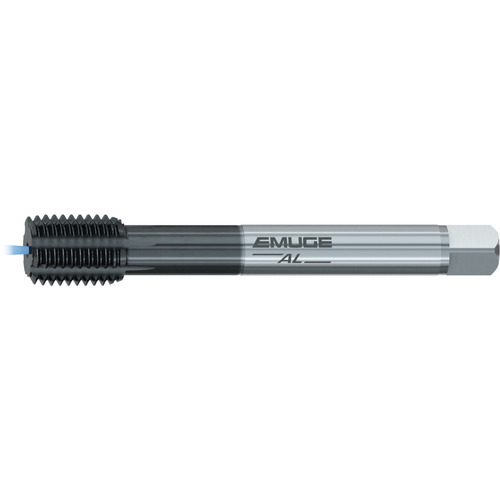

‎Forming Tap; 5/8″ - 11 × 4.331″ OAL × 0.48″ Shank Dia. ; HSSE-PM ; GLT-8 ; 2BX

‹ ›

‎Forming Tap; 5/8″ - 11 × 4.331″ OAL × 0.48″ Shank Dia. ; HSSE-PM ; GLT-8 ; 2BX

‎Forming Tap; 5/8″ - 11 × 4.331″ OAL × 0.48″ Shank Dia. ; HSSE-PM ; GLT-8 ; | 2BX |

Item # ER45U44Y7005015

Brand: Emuge-Franken

MFG #: CU44Y700.5015

Legacy Part #: ER45U44Y7005015

TradeName: InnoForm - AL

Quantity Available

Tool Type

Forming Tap

Coating

GLT-8

Thread Diameter Size (TDZ)

5/8″

Coolant Supply Property (CSP)

Coolant Thru

Overall Length (OAL)

4.331″

Threads per Inch (TPI)

Connection Diameter Machine Side (DCONMS)

0.48″

Chamfer

‎1.5P-2P

Thread Tolerance Class (TCTR)

2BX

Cutting Edge Material

HSSE-PM

Tap Standard

DIN | ANSI

Cutting Direction (HAND)

Right Hand

Thread Standard

UNC

Series/List #

CU44Y700

Application

Blind Hole

Thread Size

‎5/8″ - 11

Applicable Material

| Aluminum / Non-Ferrous Materials |

Product Features

Remarks

• The InnoForm AL roll form tap is designed for alluminum alloys. • Longer tool life and more consistent thread quality.

Country of Origin

Germany

Shipping Info

Package Weight

.202
