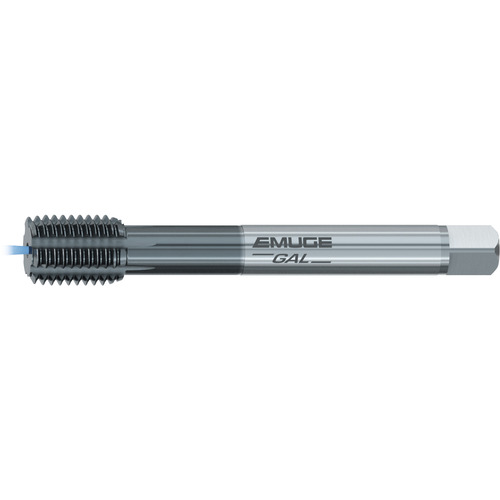

Forming Tap; 9/16″ - 18 × 3.937″ OAL × 0.429″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX
Forming Tap; 9/16″ - 18 ; 3.937″ OAL × 0.429″ Shank Dia. ; HSSE-PM ; TiCN ; 2BX ; Series CU44Q200
| Tool Type | Forming Tap | Coating | TiCN |
| Thread Diameter Size (TDZ) | 9/16″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.937″ | Threads per Inch (TPI) | 18 |
| Connection Diameter Machine Side (DCONMS) | 0.429″ | Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX | Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI | Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF | Series/List # | CU44Q200 |
| Application | Blind Hole | Thread Size | 9/16″ - 18 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Remarks | • Cast aluminum materials exert a very strong abrasive stress on the forming lobe. InnoForm GAL/E are designed specifically for these applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
