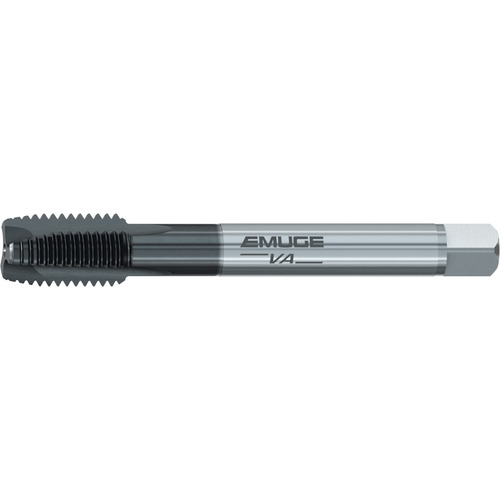

Spiral Point Tap; M48 x5 mm × 250 mm OAL ; HSSE ; GLT-1 ; Metric ; 6H ISO 2 ; Series 020C300
Spiral Point Tap; M48 × 5 mm ; 250 mm OAL ; HSSE ; TiAlN ; ISO 2 | 6H ; Series 020C300

| Thread Standard | Metric | Standard | DIN |
| Thread Size | M48 × 5 | Tool Type | Rekord B-VA |
| Thread Diameter Size (TDZ) | M48 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 5 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H | Connection Diameter Machine Side (DCONMS) | 36 mm |
| Overall Length (OAL) | 250 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | C020C300 |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel materials.
• Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
4.114
