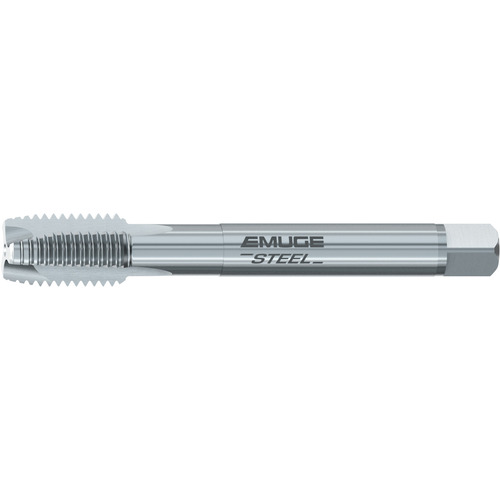

Spiral Point Tap; 3/4″ -20 × 110 mm OAL ; HSSE ; Bright ; UNEF ; 2B ; Series 208900
Spiral Point Tap; 3/4″ - 20 ; 110 mm OAL ; HSSE ; Uncoated ; 2B ; Series C0208900
| Thread Standard | UNEF | Standard | DIN |
| Thread Size | 3/4″ - 20 | Tool Type | Rekord B-Steel-L |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 20 | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 2B | Connection Diameter Machine Side (DCONMS) | 14 mm |
| Overall Length (OAL) | 110 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | C0208900 |
Product Features
| Remarks | • Rekord B-Steel design is typically for through hole applications in long-chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.277
