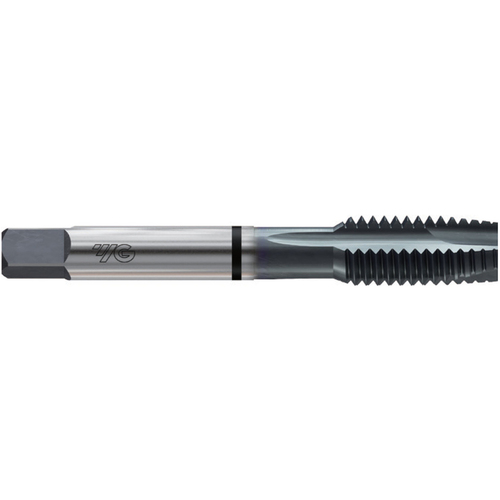

Spiral Point Tap; M10 × 1.25 mm ; 74.68 mm OAL ; 3 FL ; HSS-EX ; TiCN ; D11 ; Series T3-C
| Thread Standard | MF | Tool Type | Combo Tap |
| Thread Size | M10 × 1.25 mm | Special Feature | Black Ring |
| Thread Diameter Size (TDZ) | M10 | Connection Diameter Machine Side (DCONMS) | 9.68 mm |
| Thread Pitch (TP) | 1.25 mm | Thread Cutting Part Length (THL) | 19 mm |
| Thread Tolerance Class (TCTR) | D11 | Tapping Prehole Diameter (Pre-hole) | 8.86 mm |
| Usable Length (LU) | 31.8 mm | End Shape | Plug |
| Overall Length (OAL) | 74.68 mm | Shank Type | Square |
| Chamfer | 4P - 5P | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Length Group | 3xD |
| Flute Count (NOF) | 3 | Square Size | 7.26 mm |
| Cutting Edge Material | HSS-EX | Measurement Type | Metric |
| Standard | 302A | Series/List # | T3-C |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.625
Package Width
0.75
Package Height
0.625
Package Weight
0.999
