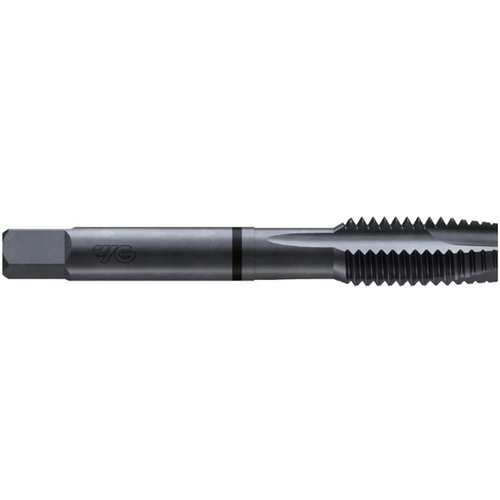

Spiral Point Tap; M24 × 1.5 mm ; 124.71 mm OAL ; 4 FL ; HSS-EX ; Oxide ; D6 ; Series T3-S
Spiral Point Tap; M24 × 1.5 mm ; 124.71 mm OAL ; 4 FL ; HSS-EX ; Oxide ; D6 ; Series T3-S
| Thread Standard | MF | Tool Type | Combo Tap |
| Thread Size | M24 × 1.5 mm | Special Feature | Black Ring |
| Thread Diameter Size (TDZ) | M24 | Connection Diameter Machine Side (DCONMS) | 19.3 mm |
| Thread Pitch (TP) | 1.5 mm | Thread Cutting Part Length (THL) | 34.01 mm |
| Thread Tolerance Class (TCTR) | D6 | Tapping Prehole Diameter (Pre-hole) | 22.64 mm |
| Usable Length (LU) | 56.39 mm | End Shape | Plug |
| Overall Length (OAL) | 124.71 mm | Shank Type | Square |
| Chamfer | 4P - 5P | Coolant Supply Property (CSP) | External |
| Coating | Oxide | Length Group | 3xD |
| Flute Count (NOF) | 4 | Square Size | 14.48 mm |
| Cutting Edge Material | HSS-EX | Measurement Type | Metric |
| Standard | 302A | Series/List # | T3-S |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.875
Package Width
1
Package Height
1
Package Weight
0.999
