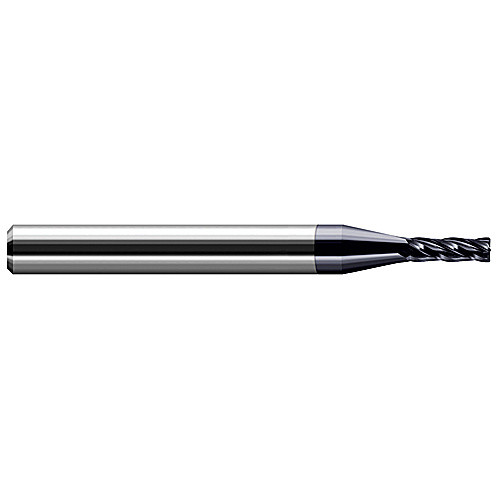

Miniature End Mills - Stub & Standard - 0.0620″ (1/16″) Cutter Diameter × 0.0030″ Radius × 0.1860″ Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
SQ End Mill; 1/16″ Dia. × 0.186″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.003″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/16″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.186″ | Corner Radius (RE) | 0.003″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Stub|Standard |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0625″ |
| Coating | AlTiN | Measurement Type | Inch |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.009
