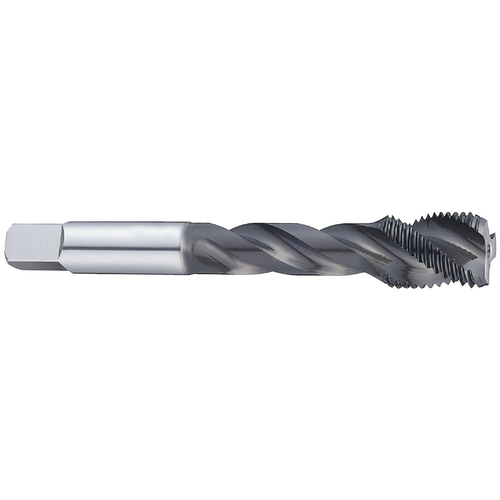

NO 8-36 2B STI SP PT TAP-HARDSLICK
| Tool Type | STI Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | #8 | Flute Helix Angle (FHA) | 40 Degrees |
| Thread Tolerance Class (TCTR) | 2B | Shank Type | Square |
| Thread Standard | UNF | Flute Type | Spiral Point |
| Thread Cutting Part Length (THL) | 0.571″ | Usable Length (LU) | 0.94″ |
| Threads per Inch (TPI) | 36 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2.38″ | Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Cutting Edge Material | HSSE | Standard | 322 |
| End Shape | Bottoming | Length Group | 3xD |
| Flute Count (NOF) | 3 | Series/List # | ST |
| Chamfer | 1.5P-2P | Thread Size | #8 - 36 |
| Coating | HL |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.125
Package Width
0.5
Package Height
0.375
Package Weight
0.024
