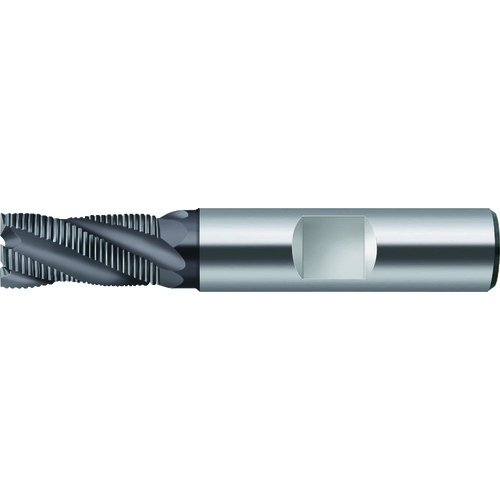

12mm Dia. × 26mm OAL 4 Flute Carbide TAX 30° Helix
SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 0.4 mm RE ; 4 FL ; 36 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 26 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 83 mm | Usable Length (LU) | 36 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.4 mm |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4724″ |
Product Features
| Family Description | H4180378–12 | Country of Origin | Germany |
Shipping Info
Package Weight
0.272
