1-12 H6 4S/P PLUG VC10TI TICN

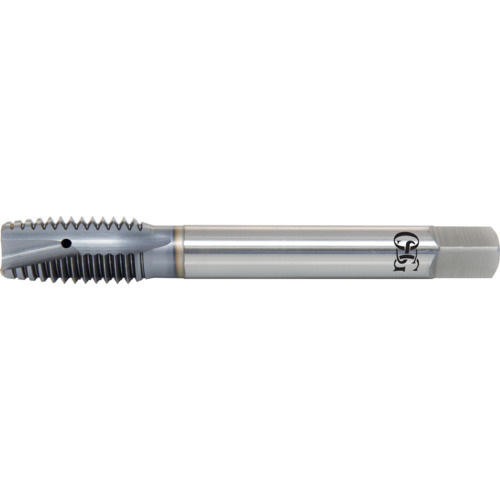

Spiral Point Tap; 1″ - 12 ; 140 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; H6 ; Series 316TI
| Thread Standard | NF | Cutting Edge Material | HSS-PM |
| Thread Size | 1″ - 12 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 1″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 12 | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Thread Tolerance Class (TCTR) | H6 | Thread Cutting Part Length (THL) | 1-1/2″ |
| Usable Length (LU) | 2.091″ | Style | Plug |
| Overall Length (OAL) | 140 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4.5P-5.5P | Measurement Type | Inch |
| Coating | Vanadium | Series/List # | 316TI |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.65000
Package Width
1.25000
Package Height
1.15000
Package Weight
.7550
