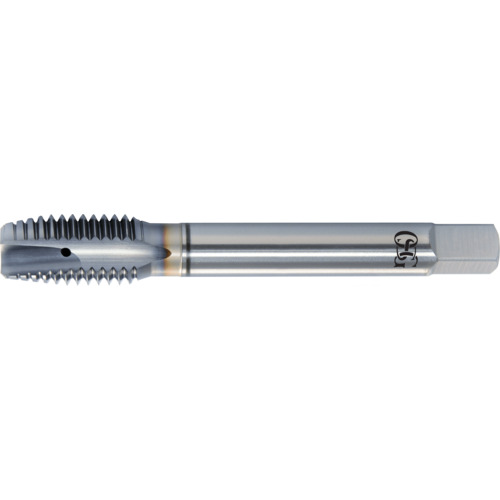

7/8-9 H6 4S/P PLUG VC10 TAP-TICN
Spiral Point Tap; 7/8″ - 9 ; 140 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; H6 ; Series 316
| Thread Standard | UNC | Cutting Edge Material | HSS-PM |
| Thread Size | 7/8″ - 9 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 7/8″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 9 | Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Thread Tolerance Class (TCTR) | H6 | Thread Cutting Part Length (THL) | 1.335″ |
| Usable Length (LU) | 1.886″ | Style | Plug |
| Overall Length (OAL) | 140 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4.5P-5.5P | Measurement Type | Inch |
| Coating | Vanadium | Series/List # | 316 |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.60000
Package Width
1.05000
Package Height
1.00000
Package Weight
.5600
