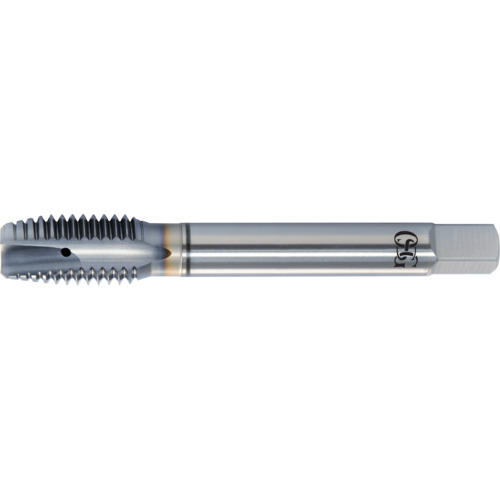

‎5/16-24 H4 3S/P PLUG VC10 TAP- TICN

‎Spiral Point Tap; 5/16″ - 24 ; 90 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; H4 ; Series 316

Item # TP2531601808

Brand: OSG

MFG #: 31601808

Legacy Part #: TP2531601808

TradeName: EXOTAP VC-10

Quantity Available

Thread Standard

UNF

Cutting Edge Material

HSS-PM

Thread Size

‎5/16″ - 24

Tool Type

High Performance Tap

Thread Diameter Size (TDZ)

5/16″

Applicable Material

| Steel | Aluminum / Non-Ferrous Materials |

Threads per Inch (TPI)

Connection Diameter Machine Side (DCONMS)

0.318″

Thread Tolerance Class (TCTR)

Thread Cutting Part Length (THL)

0.665″

Usable Length (LU)

1.378″

Style

Plug

Overall Length (OAL)

90 mm

Cutting Direction (HAND)

Right Hand

Chamfer

‎4.5P-5.5P

Measurement Type

Inch

Coating

Vanadium

Series/List #

316

Flute Count (NOF)

Product Features

Country of Origin

Japan

Shipping Info

Package Length

2.30000

Package Width

.45000

Package Height

.45000

Package Weight

.0700
