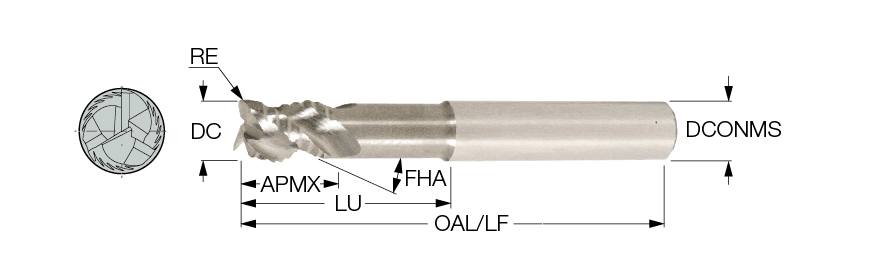

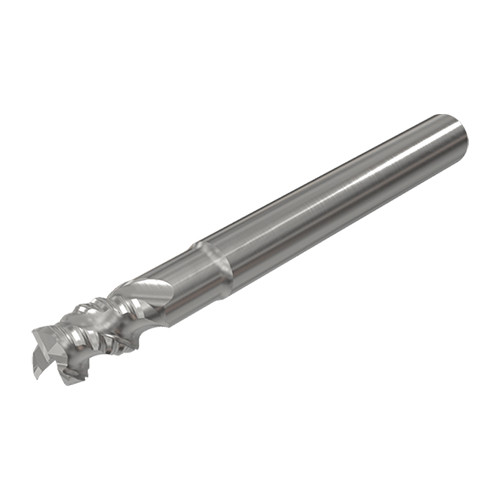

ECRI-B3 250-375/.87C250 IC08
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.008″ RE ; 3 FL ; 0.87″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/4″ | Grade | IC08 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.228″ |
| Depth of Cut Maximum (APMX) | 3/8″ | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Center Cutting Endmills 90° |
| End Shape | Corner Radius | Decimal Equivalent | 0.25″ |
| Usable Length (LU) | 0.87″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.008″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Product Features
| Family Description | Solid carbide roughing end mills, 3 flute 45° Helix, used for high stock removal rates of aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.063
