2047G 5/8-18 S/P H3 3FL

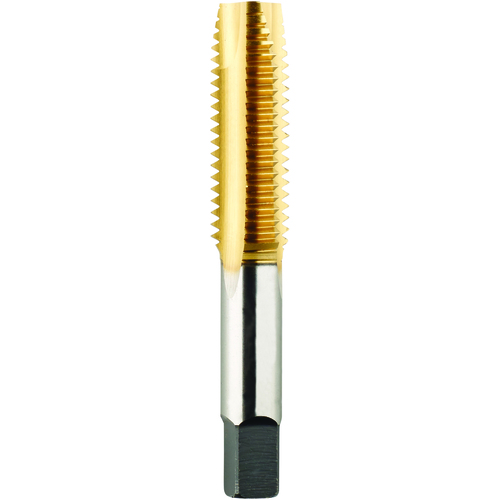

Spiral Point Tap; 5/8″ - 18 ; 3-13/16″ OAL ; 3 FL ; TiN ; H3 ; Series 2047G
| Thread Standard | NF | Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Thread Size | 5/8″ - 18 | Thread Cutting Part Length (THL) | 1-13/16″ |
| Thread Diameter Size (TDZ) | 5/8″ | Drive Size (DRVS) | 0.36″ |
| Threads per Inch (TPI) | 18 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Spiral Point |
| Usable Length (LU) | 1-13/16″ | Style | Plug |
| Overall Length (OAL) | 3-13/16″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 2047G |
| Cutting Edge Material | HSS |
Product Features
| Remarks | ?Spiral Point taps are designed for machine tapping in through holes in a wide variety of materials.&NewLine?The point ejects the chips ahead of the tap, eliminating chip disposal problems and greater tap core strength allowing for higher cut ting speeds. ?Titanium Nitride (TiN) Coating results in an extremely hard surface with high lubricity for increased tool life, improved thread quality, reduced torque and increased tapping speeds for greater productivity. | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.202
