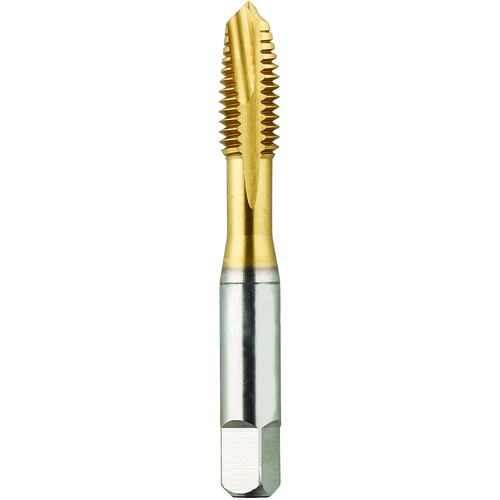

2090G SHEARTAP M8 × 1.00
Spiral Point Tap; M8 × 1 mm ; 2-23/32″ OAL ; 3 FL ; HSS ; TiN ; D5 ; Series 2090G
| Thread Standard | NF | Applicable Material | | Steel | Stainless Steel | |
| Thread Size | M8 × 1 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | M8 | Thread Cutting Part Length (THL) | 0.688″ |
| Thread Pitch (TP) | 1 mm | Drive Size (DRVS) | 0.238″ |
| Thread Tolerance Class (TCTR) | D5 | Flute Type | Straight |
| Usable Length (LU) | 1.126″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ | Style | Plug |
| Chamfer | Plug | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 2090G |
| Tool Type | Production Tap |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.07
