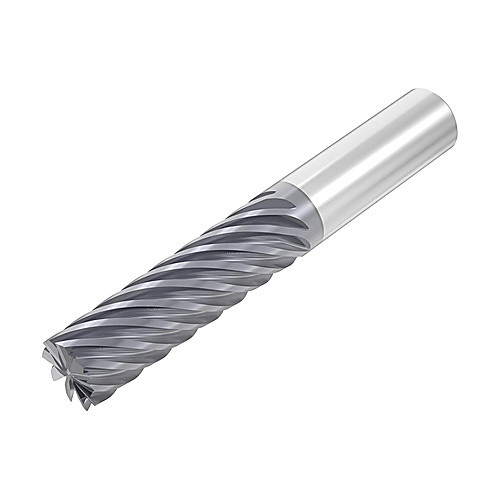

S938-0.625-D3-C008.0-Z9 ALTIN
SQ End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 4″ OAL ; 9 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/8″ | Flute Helix Angle (FHA) | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Overall Length (OAL) | 4″ | Corner Chamfer Width (CHW) | 0.008″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 9 | Corner Radius (RE) / Chamfer Width (CHW) | 0.008″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.6
