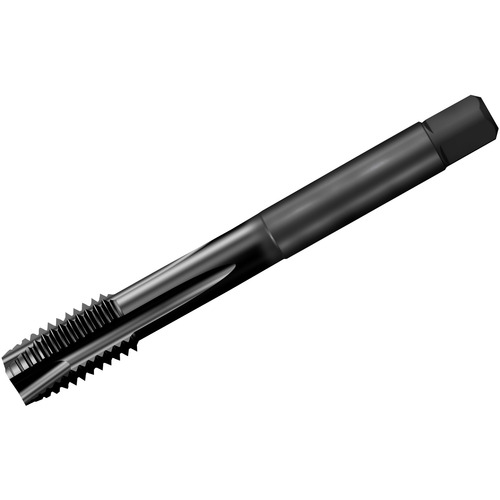

T200-XM101DA-M27 B145 COROTAP 200
Spiral Point Tap; M27 × 3 mm ; 160 mm OAL ; 4 FL ; HSSCo ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Standard | DIN376 |
| Thread Size | M27 × 3 | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Thread Diameter Size (TDZ) | M27 | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Thread Pitch (TP) | 3 mm | Thread Cutting Part Length (THL) | 38 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Usable Length (LU) | 97 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSCo | Measurement Type | Metric |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.8800
