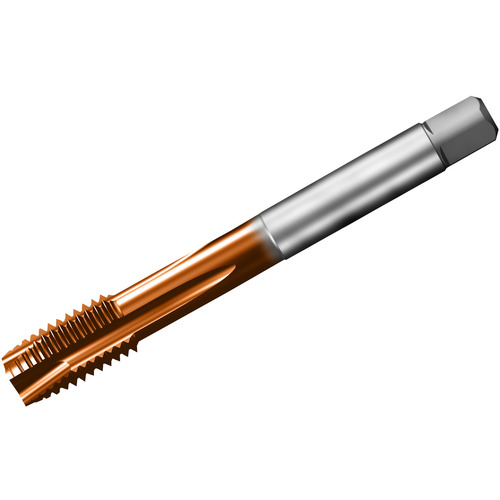

T200-XM101DA-M6 C110 -
Spiral Point Tap; M6 × 1 mm ; 82.4 mm OAL ; 3 FL ; HSS-PM ; AlCrN ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Standard | DIN376 |
| Thread Size | M6 × 1 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M6 | Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Thread Pitch (TP) | 1 mm | Thread Cutting Part Length (THL) | 15.1 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Usable Length (LU) | 59 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 82.4 mm | Cutting Direction (HAND) | Right Hand |
| Coating | AlCrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.028
