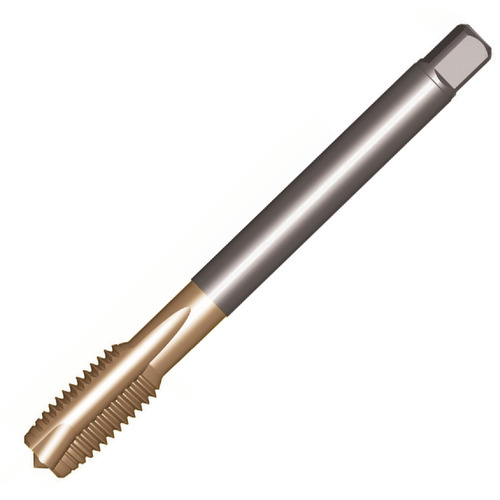

T200-XM100DB-M14X150C150 COROTAP 200
Spiral Point Tap; M14 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSS-PM ; Uncoated ; 6H
Additional Tariff Surcharge of 8 %
| Thread Standard | Metric | Standard | DIN374 |
| Thread Size | M14 × 1.5 | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | M14 | Connection Diameter Machine Side (DCONMS) | 11 mm |
| Thread Pitch (TP) | 1.5 mm | Thread Cutting Part Length (THL) | 21 mm |
| Thread Tolerance Class (TCTR) | 6H | Flute Type | Straight |
| Usable Length (LU) | 71 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
.2500
