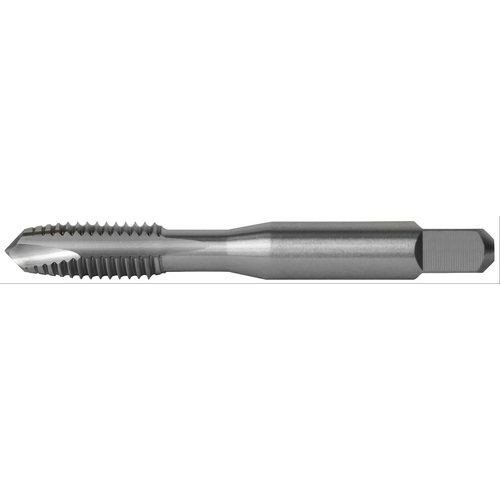

M5x0.8 2 Flute D4 HSS Standard Plug Chamfer Spiral Point Tap- Bright
Spiral Point Tap; M5 × 0.8 mm ; 2.38″ OAL ; 2 FL ; HSS ; Uncoated ; D4 | 6H ; Series 1011
| Thread Size | M5 × 0.8 | Application | General Purpose |
| Thread Diameter Size (TDZ) | M5 | Connection Diameter Machine Side (DCONMS) | 4.93 mm |
| Thread Pitch (TP) | 0.8 mm | Thread Cutting Part Length (THL) | 12.7 mm |
| Thread Tolerance Class (TCTR) | D4 | 6H | Flute Type | Straight |
| Overall Length (OAL) | 2.38″ | End Shape | Square |
| Chamfer | Plug | Style | Plug |
| Coating | Uncoated | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS | Length Group | 2D |
| Tool Type | Machine Tap | Measurement Type | Metric |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | | Series/List # | 1011 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
