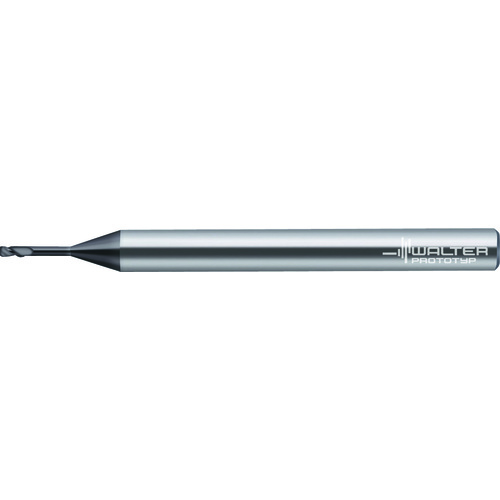

3mm Dia. × 75mm OAL 2 Flute Carbide TAX .20mm CR E
SQ End Mill; 3 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 75 mm OAL ; 0.2 mm RE ; 2 FL ; 12 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 12 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 75 mm | Usable Length (LU) | 12 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.2 mm |
| Coating | AlTiN | Decimal Equivalent | 0.1181″ |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | H8005828–3–0.2 | Country of Origin | Germany |
Shipping Info
Package Weight
0.062
