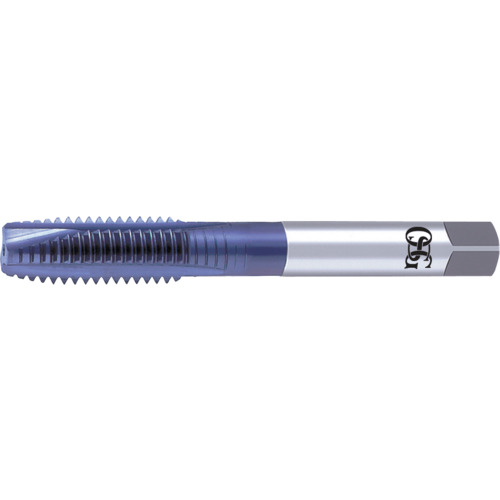

7/8-9 4FL H3 VC-10 Spiral Point Tap - TICN
Spiral Point Tap; 7/8″ - 9 ; 4-11/16″ OAL ; 4 FL ; HSS-PM ; TiCN ; H3 ; Series 312TI
| Thread Standard | NC | Flute Count (NOF) | 4 |
| Thread Size | 7/8″ - 9 | Cutting Edge Material | HSS-PM |
| Thread Diameter Size (TDZ) | 7/8″ | Tool Type | Spiral Point Tap |
| Threads per Inch (TPI) | 9 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | H3 | Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Usable Length (LU) | 1.885″ | Thread Cutting Part Length (THL) | 2-7/32″ |
| Overall Length (OAL) | 4-11/16″ | End Shape | Spiral Point |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312TI |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
1.20000
Package Height
1.15000
Package Weight
.5150
