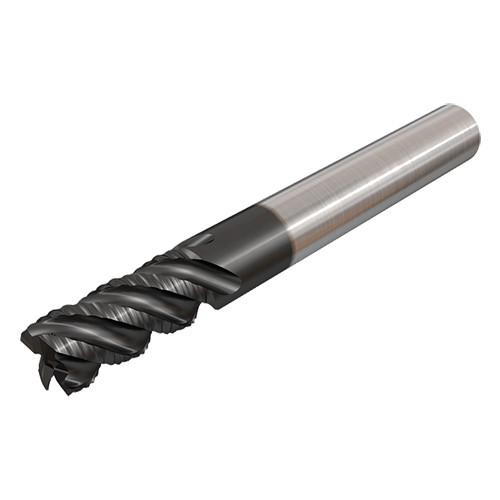

ECRI-B4M 312-625-C312 IC900
SQ End Mill; 0.312″ Dia. × 5/8″ LOC × 0.312″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 5/8″ LBS ; Carbide ; AlTiN

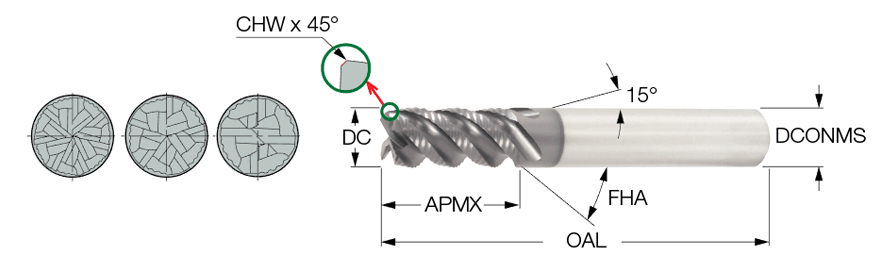

| Cutting Diameter (DC) | 0.312″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 2-1/2″ | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Shank Type | Round | Decimal Equivalent | 0.312″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e9 |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Chamfer Width (CHW) | 0.01″ |
Product Features
| Family Description | Solid Carbide Endmill Roughers, 45° Helix Medium Length (2xD) for High Stock Removal Rates | Country of Origin | USA |
Shipping Info
Package Weight
0.094
